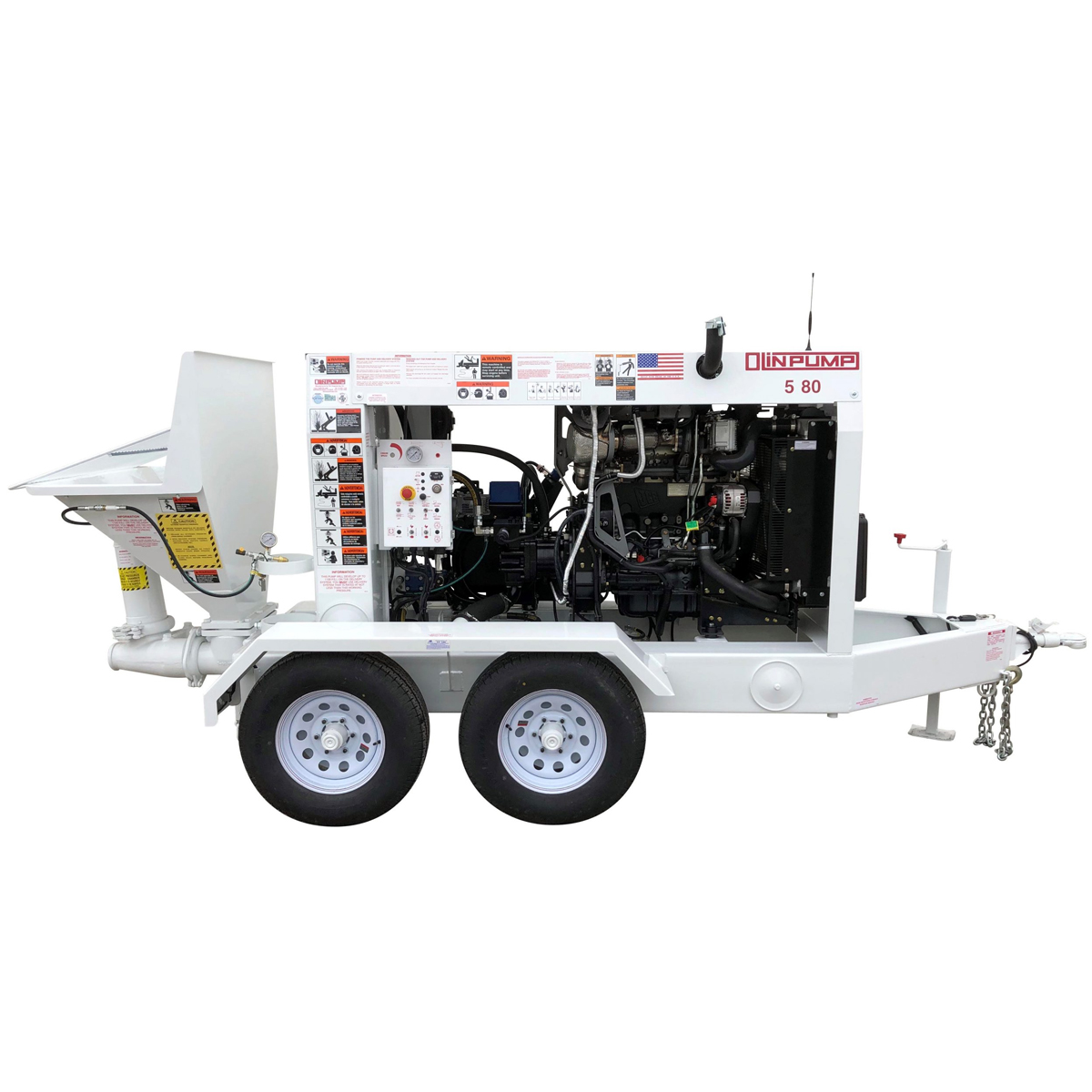

5 80 Small Line Ball Valve Pump

The 5 80 & 95’s 7″ delivery cylinders combined with the Millennium Series manifold,handle both course and high sack structural 1/2″ mixes, making them the perfect choice for residential, commercial, and large slurry back-fill jobs.

Category:

Description

Specification

Maximum Output 80 cyh 61 cmh
Delivery Pressure 1100 psi 76 bar
Delivery Cylinder 7 in 178 mm
Stroke 24 in 610 mm
Strokes/Minute 68
Engine Power 108 hp 79 kw
Hopper Capacity 6 cu ft .17 cu mtr
Outlet 4 in 100 mm
Control System Electric/Hydraulic
Hydraulic Capacity 85 gals 321 l
Weight 5500 lbs 2495 kg
Length 186 in 472 cm
Width 70 in 178 cm
Height 82 in 208 cm

Additional information

Brand

Olinpump
